Key features:

• Short overall length for compact installations
• Easy mounting process for quick and hassle-free setup
• Excellent vibration damping to minimize system resonance and enhance overall stability

Specifications:

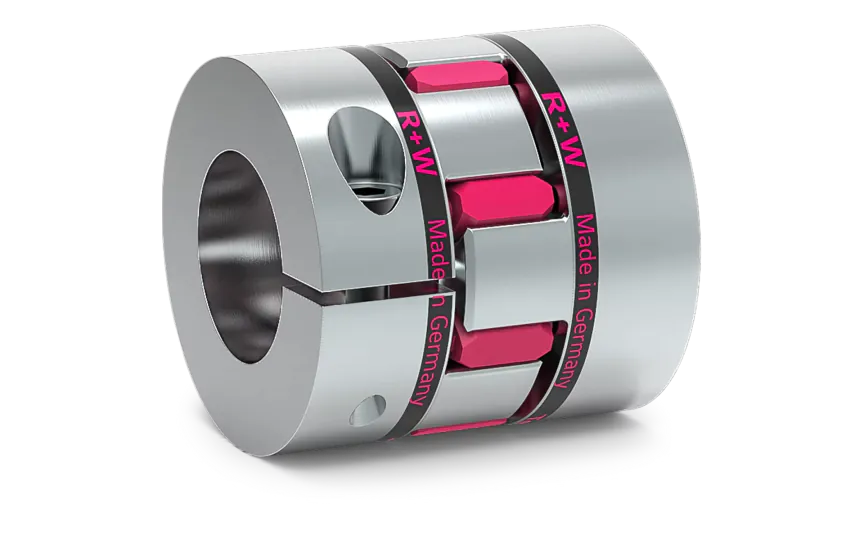

• Type: A elastomer coupling with clamping hub
• Shore hardness: 98 Sh D
• Temperature Range: -30 °C to +100 °C

Design and materials:

• Two concentrically machined hubs with curved jaws provide enhanced flexibility and compensate for misalignments
• High-strength aluminum hubs ensure durability and reliable performance
• The elastomer insert is made from a wear-resistant and thermally stable TPU material, guaranteeing long-lasting operation even under demanding conditions

Bore specifications:

• Bore D1: Ø19mm H7
• Bore D2: Ø19mm H7
