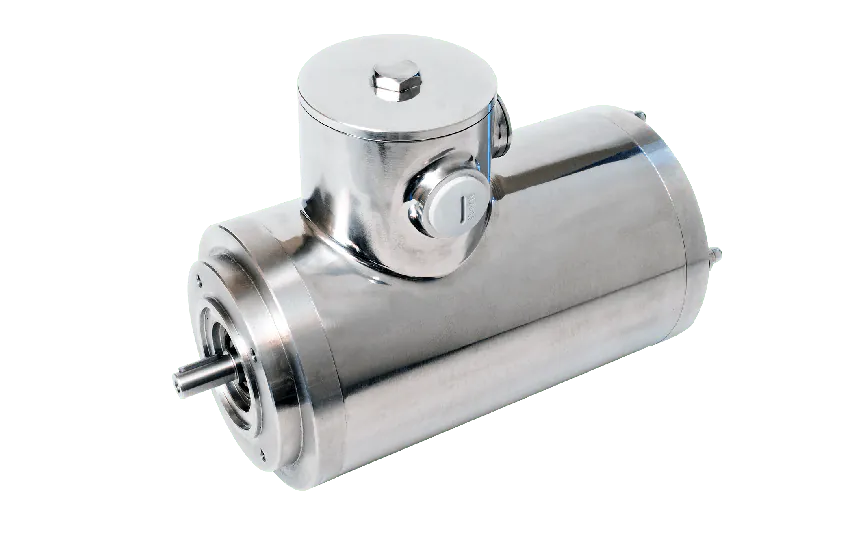

Marlin AC motor TENV71B-2, 0.55kW, 2800RPM, 230/400V, 50Hz, IP66, stainless steel

TENV71B-2

The Marlin AC motor TENV71B-2 is a powerful 0.55 kW stainless steel motor engineered for hygienic and harsh environments. Operating at 2880 RPM, this 2-pole motor delivers a nominal torque of 1.85 Nm, making it ideal for high-speed processing applications. Its EN 4301 stainless steel housing ensures corrosion resistance and long-term durability, especially in the food and pharmaceutical sectors. The motor is designed with IP66 ingress protection and a Totally Enclosed Non-Ventilated (TENV) cooling system, guaranteeing complete sealing against dust and high-pressure water jets. With IE4 efficiency, it meets the highest standards for energy savings. Certified to UL and cURus, and equipped with PTC thermal protection, this motor is a robust choice for demanding installations requiring reliable performance, hygiene compliance, and low maintenance.

€891.00
Excluded taxes and delivery costs

Made to order

Expected shipment:

Loading...
Estimated Shipping:

Description

Key features:

  • Clean-in-Place: Designed to facilitate easy cleaning and maintenance, ensuring optimal hygiene standards are met.
  • IP66 rating: Provides protection against dust and water ingress, making it suitable for harsh and challenging environments.
  • Totally Enclosed Non-Ventilated (TENV): Ensures effective protection against contaminants.
  • Powerful performance: Boasting a 0.55kW output and a rapid 2800RPM rotation speed.
  • B14 flange: Offers a robust mounting solution.

Specifications:

  • Materials: Constructed from EN 1.4301/AISI 304 and EN 1672-2.
  • Certification: Holds cURus certification and UL approval.

Specifications

Efficiency standard
IE4
BCD
85
Start current ratio
7.8

Foreign trade

HS-Code
85015100
ERP net weight (Kg)
14.30
Country of origin
DEU
Marlin AC motor TENV71B-2, 0.55kW, 2800RPM, 230/400V, 50Hz, IP66, stainless steel
Marlin AC motor TENV71B-2, 0.55kW, 2800RPM, 230/400V, 50Hz, IP66, stainless steel
TENV71B-2
