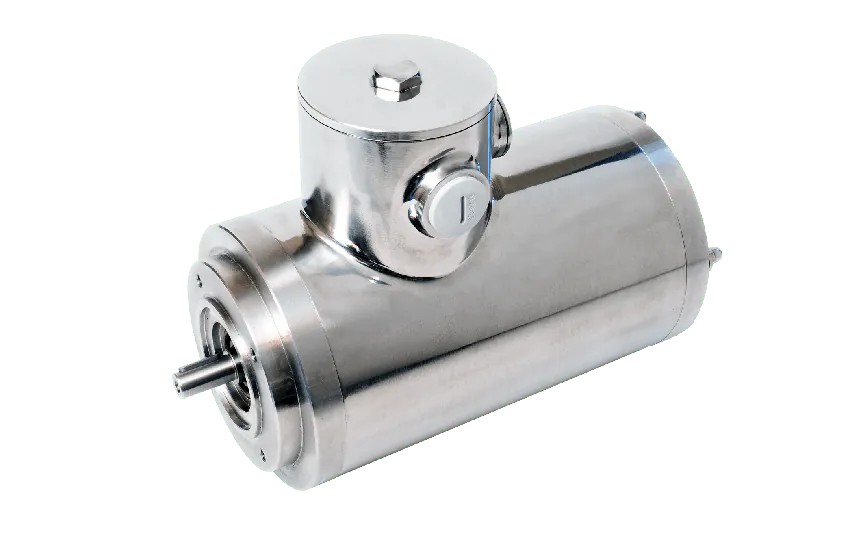

Marlin AC motor TENV71B-4, 0.37kW, 1400RPM, 230/400V, 50Hz, IP66, stainless steel

TENV71B-4

The Marlin TENV71B-4 is a robust 0.37 kW stainless steel AC motor, engineered for industries where hygiene, durability, and operational reliability are essential. Running at 1400 RPM with 4 poles, it delivers a dependable 2.48 Nm nominal torque, making it ideal for conveyors, small mixers, and automated systems requiring steady power at mid-range speeds. Its housing in EN 4301 stainless steel ensures outstanding corrosion resistance and long life, even under intensive cleaning, making it particularly suitable for food, beverage, and pharmaceutical environments. Designed with IP66 ingress protection, the motor is fully sealed against dust and high-pressure water, while the Totally Enclosed Non-Ventilated (TENV) cooling system ensures contamination-free operation. With IE3 efficiency, it supports energy savings and sustainable production. Built with a Ø14 mm shaft, IEC 71 frame, and B14 mounting flange with 85 mm BCD, it integrates seamlessly into standard drive systems. Certified to UL and cURus standards and equipped with PTC thermal protection, this motor offers a reliable, low-maintenance solution that safeguards process uptime and quality.

€806.00
Excluded taxes and delivery costs

In stock

Expected shipment:

Loading...
Estimated Shipping:

Description

Key features:

  • Clean-in-Place (CIP): The motor's design allows for easy cleaning and maintenance.
  • IP66 rating: The motor is dust-tight and protected against powerful water jets.
  • Totally Enclosed, Non-Ventilated (TENV): The motor's enclosure prevents any external particles from entering.
  • 0.37kW power: With a power rating of 0.37kW, this motor delivers a reliable and efficient performance.
  • 1400RPM speed: The motor operates at a speed of 1400RPM.
  • B14 flange: The B14 flange design simplifies installation and ensures a secure fit.
  • IE3efficiency: The motor boasts high energy efficiency, meeting IE3 standards and reducing power consumption.

Specifications:

  • Material: Constructed from EN 1.4301/AISI 304 and EN 1672-2.
  • IP69K compatibility: When mounted on a gearbox with the correct cable and cable gland, the motor complies with IP69K standards, offering reliable protection against high-pressure and high-temperature washdowns.
  • Certifications: The AC-motor holds cURus certification and is UL approved.

Specifications

Certifications
UL, cURus
Efficiency standard
IE3
BCD
85
Start current ratio
4.5

Downloads

Foreign trade

HS-Code
85015100
ERP net weight (Kg)
12.20
Country of origin
DEU
