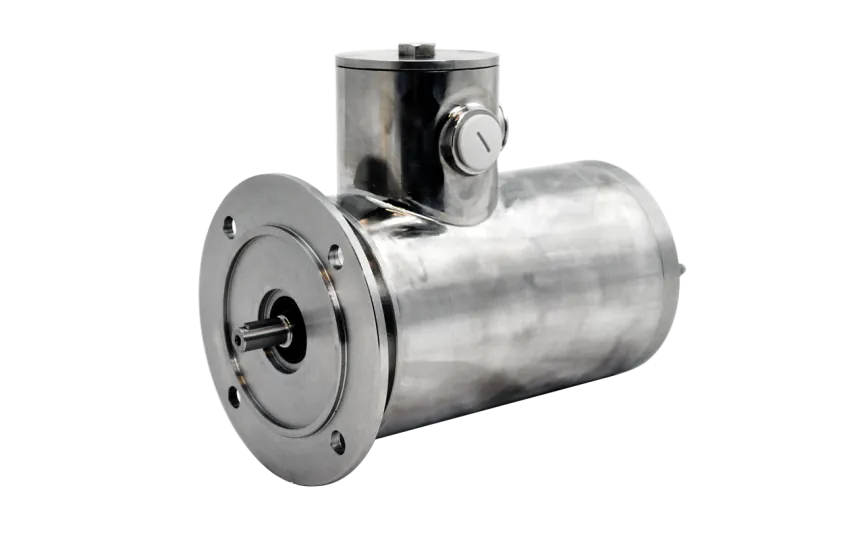

Marlin AC motor TENV71B-4B5, 0.37kW, 1400RPM, 230/400V, 50Hz, IP66, stainless steel

TENV71B-4B5

The Marlin TENV71B-4B5 is a 0.37 kW stainless steel AC motor, engineered for industries that demand hygiene, durability, and high operational reliability. Operating at 1440 RPM, this 4-pole motor provides a nominal torque of 2.48 Nm, making it suitable for steady-speed processing tasks. Its EN 4301 stainless steel housing ensures outstanding corrosion resistance and is built to withstand rigorous cleaning routines, ideal for food and pharmaceutical environments. The motor features IP66 ingress protection, fully sealed against dust and high-pressure water jets, combined with a Totally Enclosed Non-Ventilated (TENV) cooling system, eliminating contamination risks. With an IE3 efficiency class, it contributes to reduced energy consumption and operational costs. The B5 flange design with a Ø14 mm shaft provides seamless integration with gear units and equipment. Certified to UL and cURus standards and equipped with PTC thermal protection, this motor embodies a robust, low-maintenance solution that helps secure process uptime and product safety.

€891.00
Excluded taxes and delivery costs

Made to order

Expected shipment:

Loading...
Estimated Shipping:

Description

Key features:

  • Clean-in-Place (CIP) Design: Facilitates effortless cleaning and maintenance, ensuring stringent hygiene standards are met.
  • IP66 Rating: Provides protection against dust and water ingress, making it ideal for challenging working conditions.
  • TENV (Totally Enclosed Non-Ventilated) Construction: Prevents the ingress of contaminants.
  • 0.37kW power output: Offers ample power for a wide range of applications.
  • 1400RPM speed: Delivers consistent and reliable performance.
  • B5 flange: Enables seamless integration with other equipment.

Specifications:

  • Material: Constructed from EN 1.4301/AISI 304 and EN 1672-2 compliant.
  • IP69K Compliance: When paired with the correct cable and cable gland and mounted on a gearbox, the motor meets IP69K requirements, making it suitable for rigorous cleaning processes.
  • Certification: The motor carries cURus certification and is UL approved.

Specifications

Certifications
UL, cURus
Efficiency standard
IE3
BCD
85
Start current ratio
4.5

Downloads

Foreign trade

HS-Code
85015100
ERP net weight (Kg)
12.50
Country of origin
DEU
